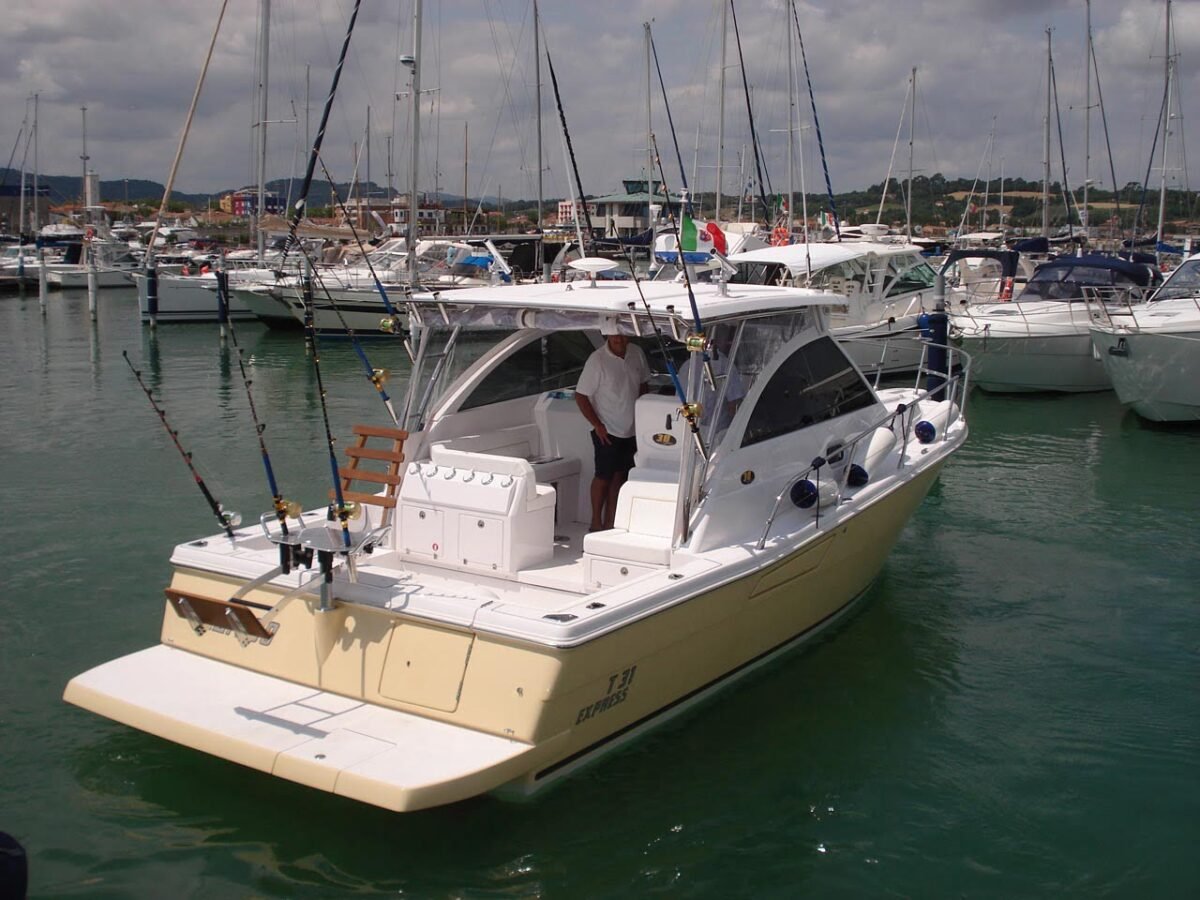

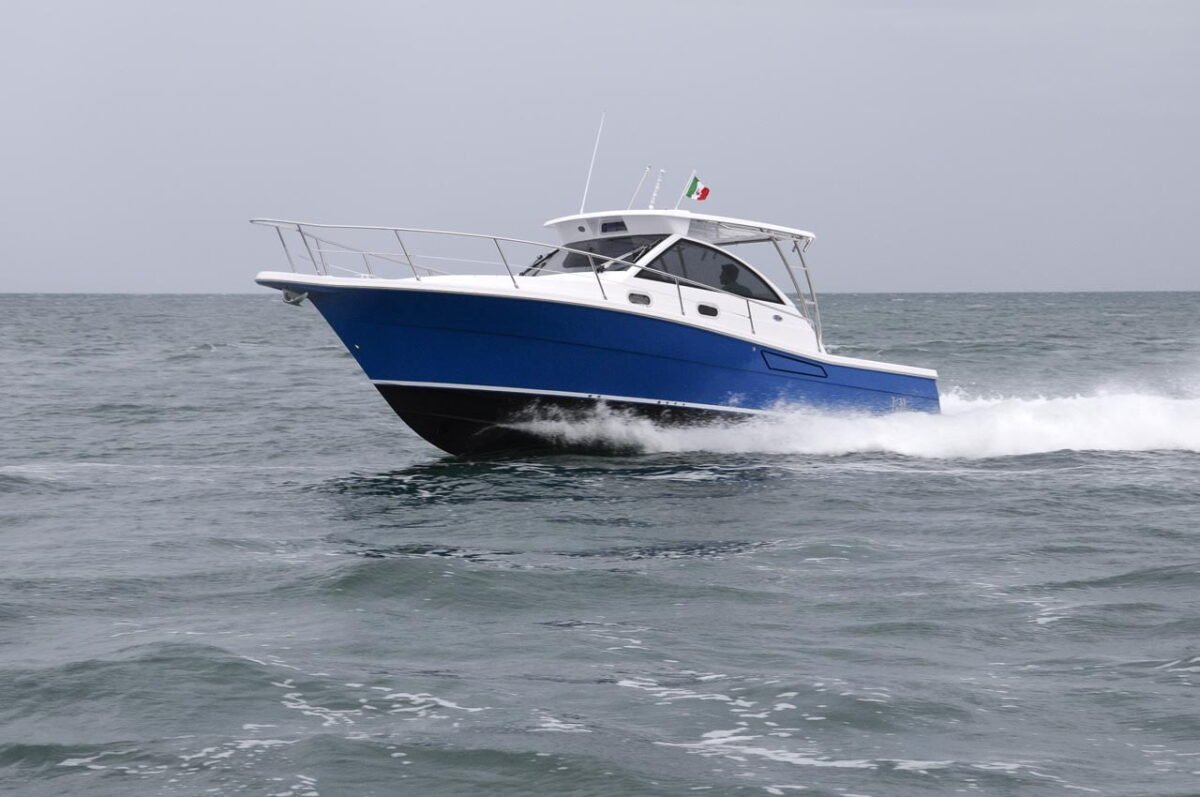

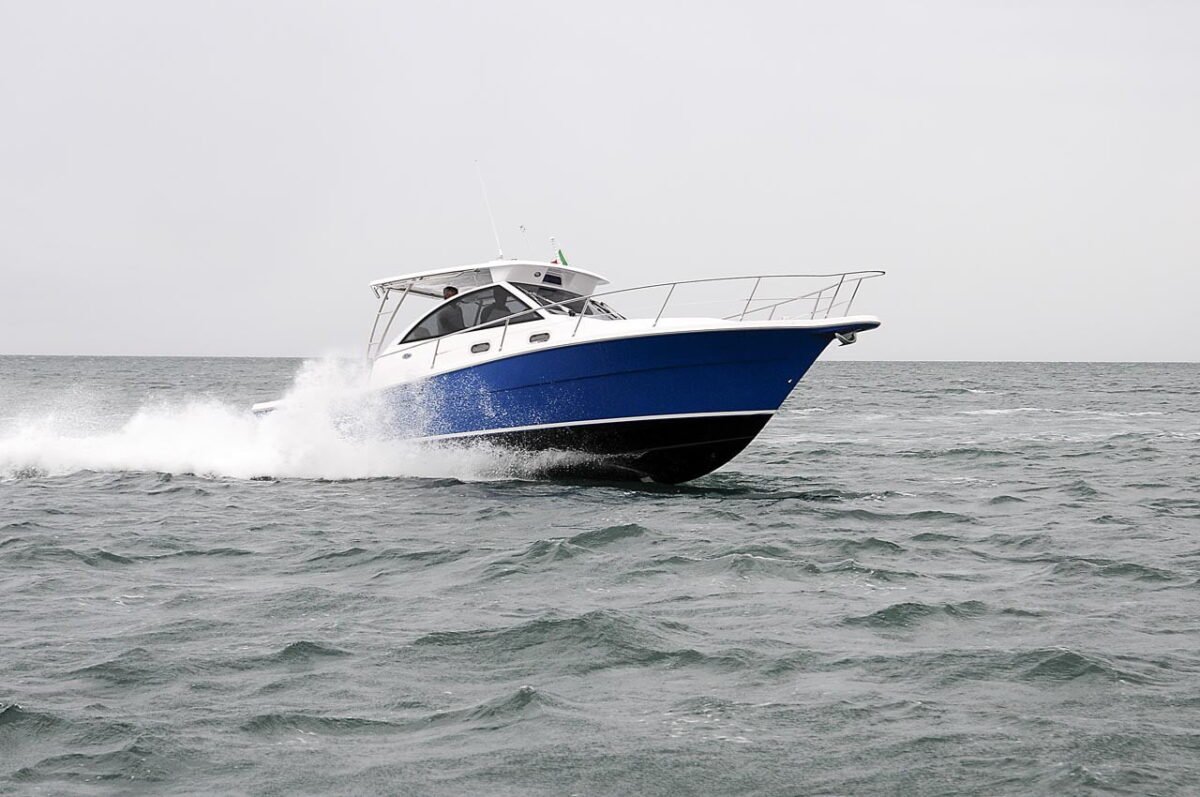

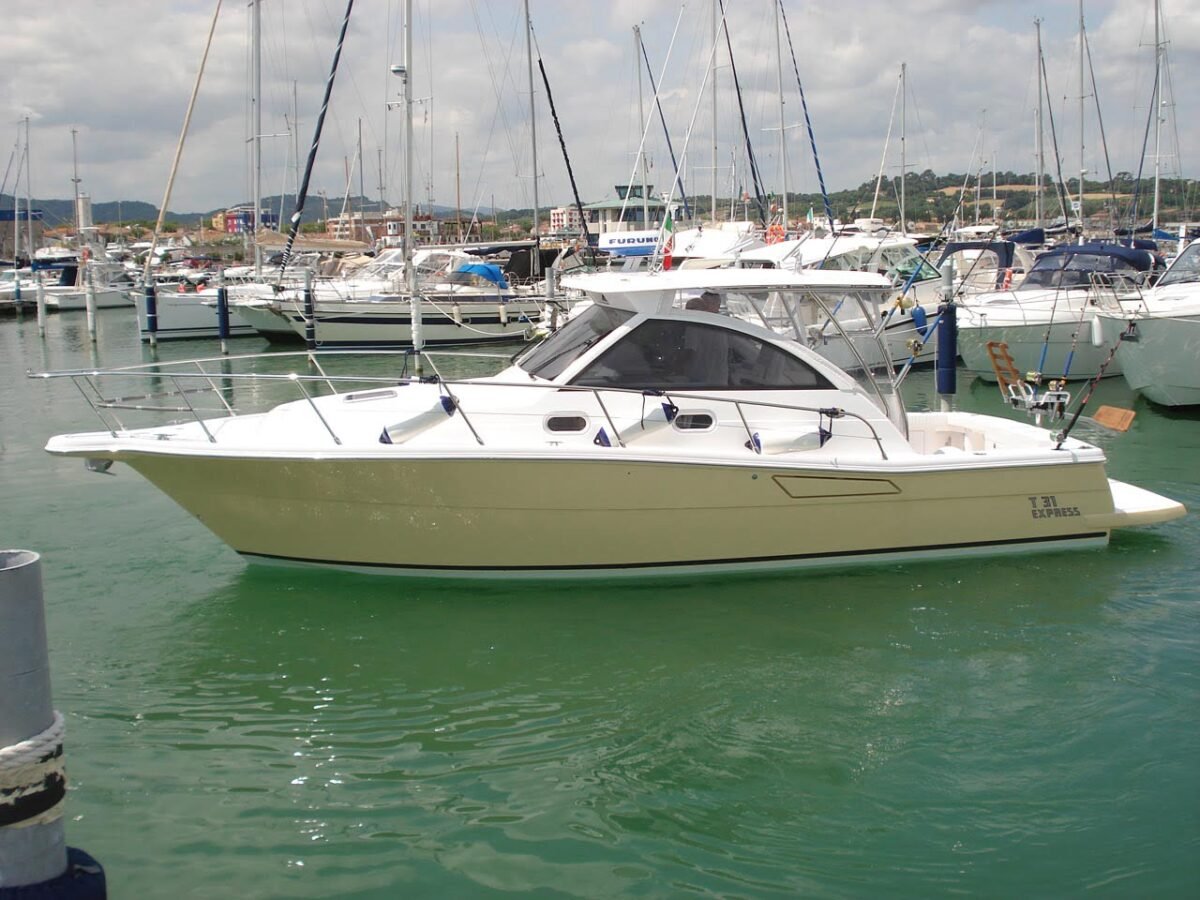

3B CRAFT 31 EX

Prix HT du bateau :

186 000,00

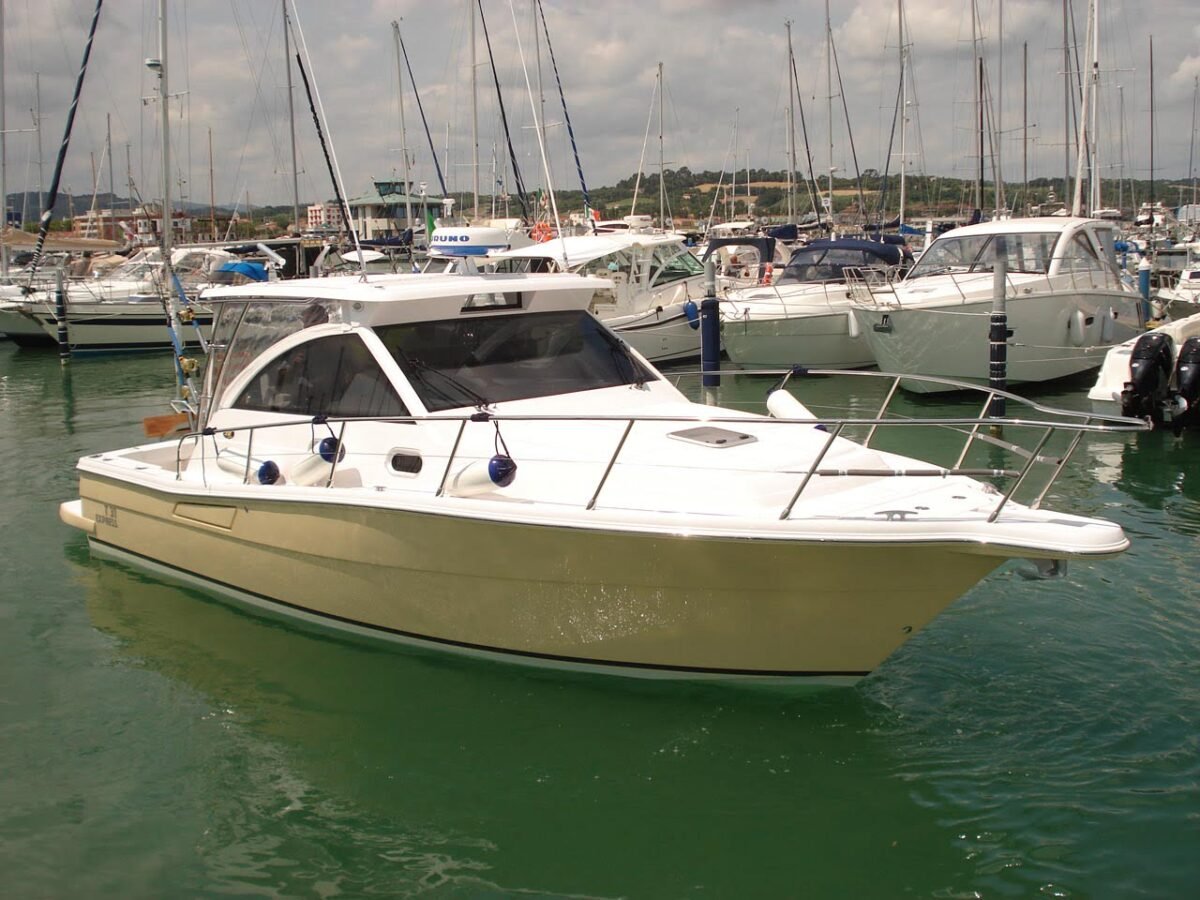

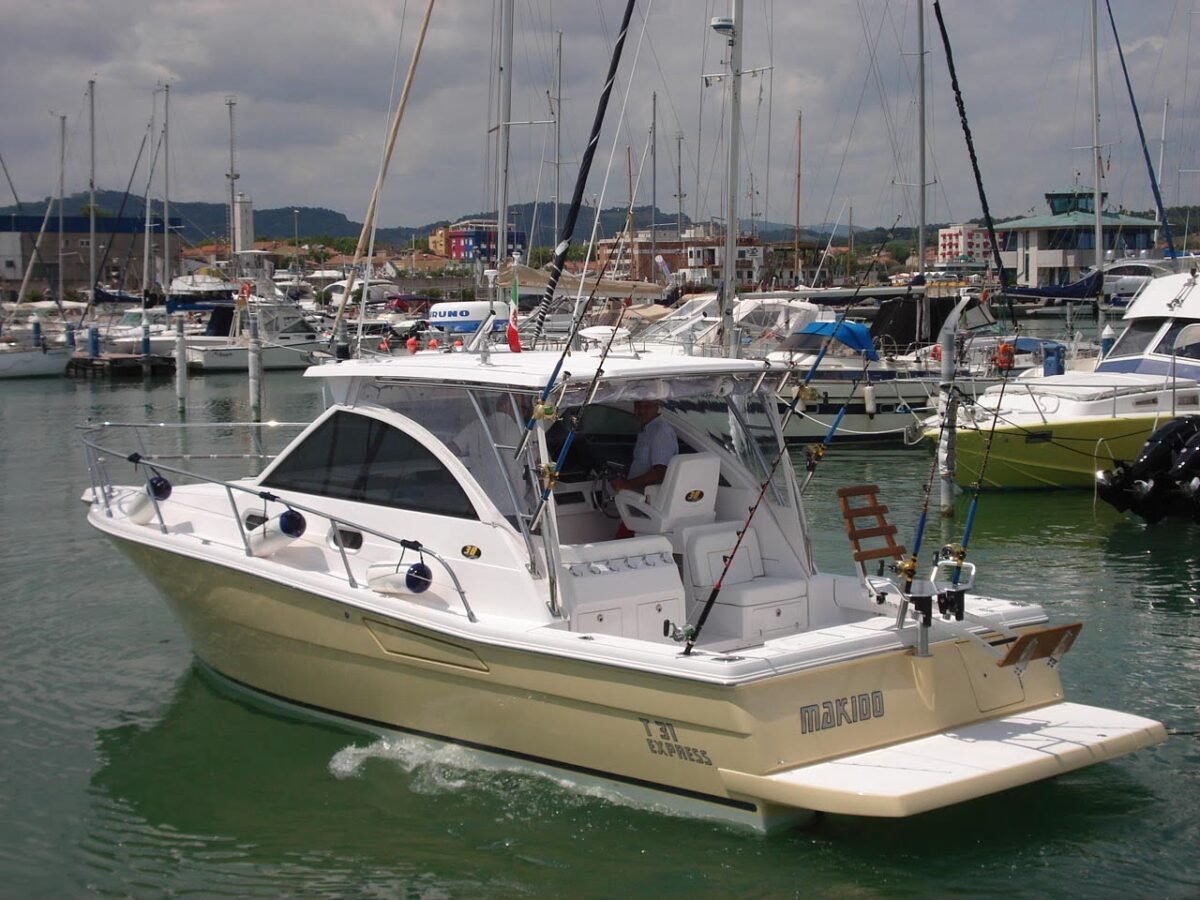

3B CRAFT 31 EX

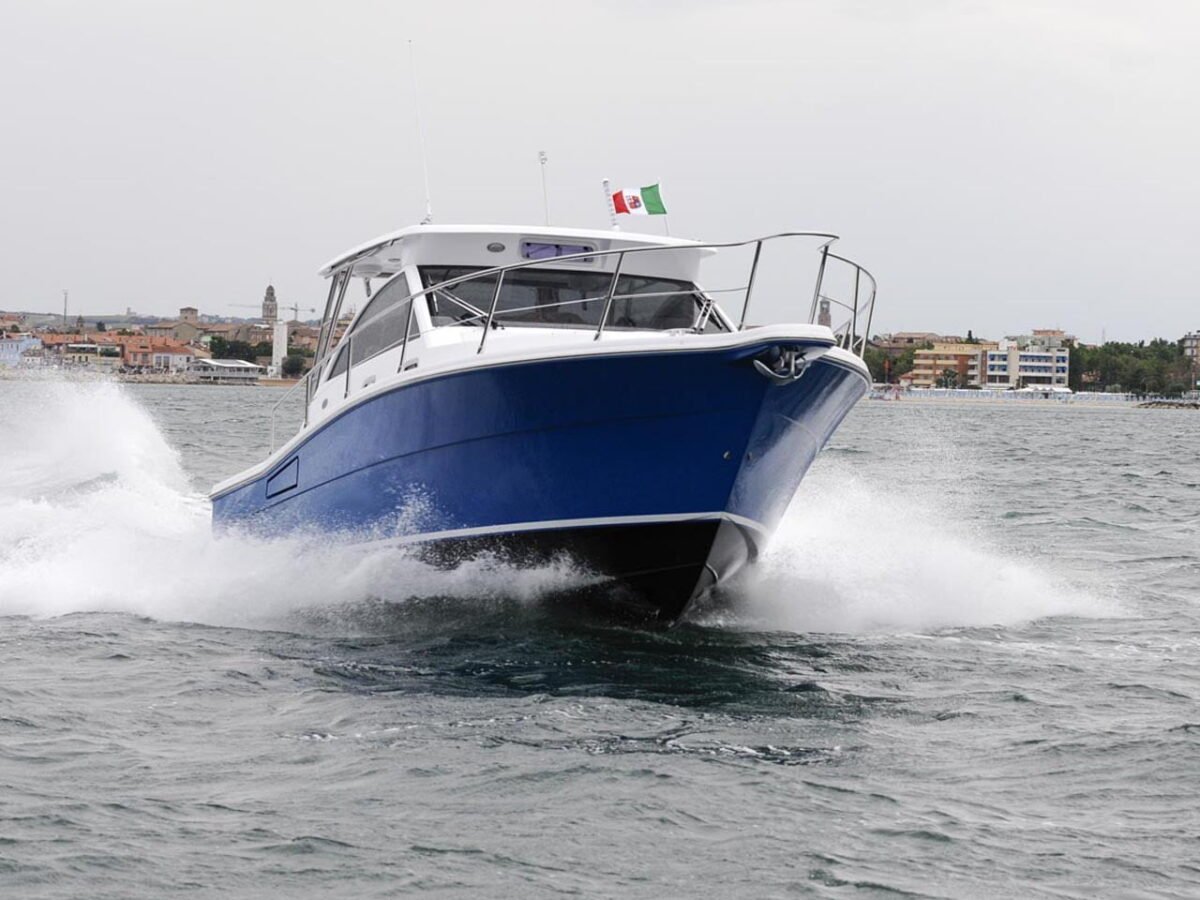

STABILITÉ ET VITESSE

Né d’une recherche minutieuse et du bon compromis entre résistance, stabilité et rapidité, facteurs fondamentaux pour la réussite d’un projet. Conçu pour les longues sorties de pêche grâce au départ particulier de la coque, le roulis à l’arrêt a été réduit au minimum et une paroi haute permet une sécurité maximale aussi bien pendant la navigation que pendant la pêche. L’harmonie architecturale du bateau met tout à sa place, des porte-cannes aux viviers et aquariums, du compartiment à appâts au siège escamotable à l’arrière. Le pêcheur sportif se prête à tous les types de pêche sportive, caractérisé par de grands bassins de poissons vivants et pêchés, un logement sous le banc de guidage igloo et un grand casier interne pour stocker tout l’équipement. Mais il est également conçu pour la famille avec un bain de soleil confortable « chaise longue » arc et divers sièges tous en cellule fermée avec d’excellentes finitions.

Veuillez activer JavaScript dans votre navigateur pour remplir ce formulaire.

Eric + 33 6 25 34 34 25

Veuillez activer JavaScript dans votre navigateur pour remplir ce formulaire.

Eric  + 33 (0) 6 25 34 34 25

Veuillez activer JavaScript dans votre navigateur pour remplir ce formulaire.

A partir de Prix HT :

186 000,00

 BATEAU NEUF



Mandataire bateaux toutes marques
En savoir plus

STANDARD MECHANICAL AND ELECTRICAL EQUIPMENT

General electrical system

Electrical system 12 V
General electrical panel inside

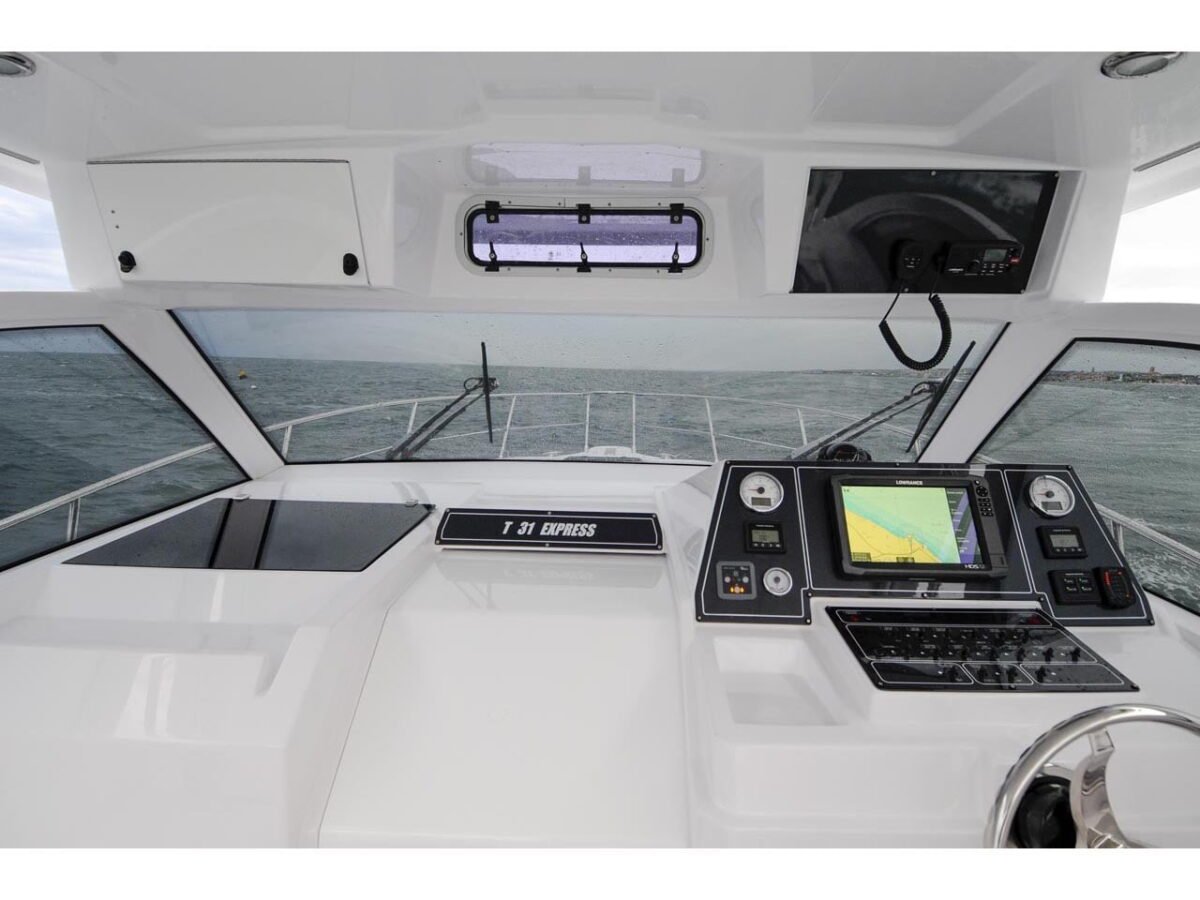

Helm panel with switches

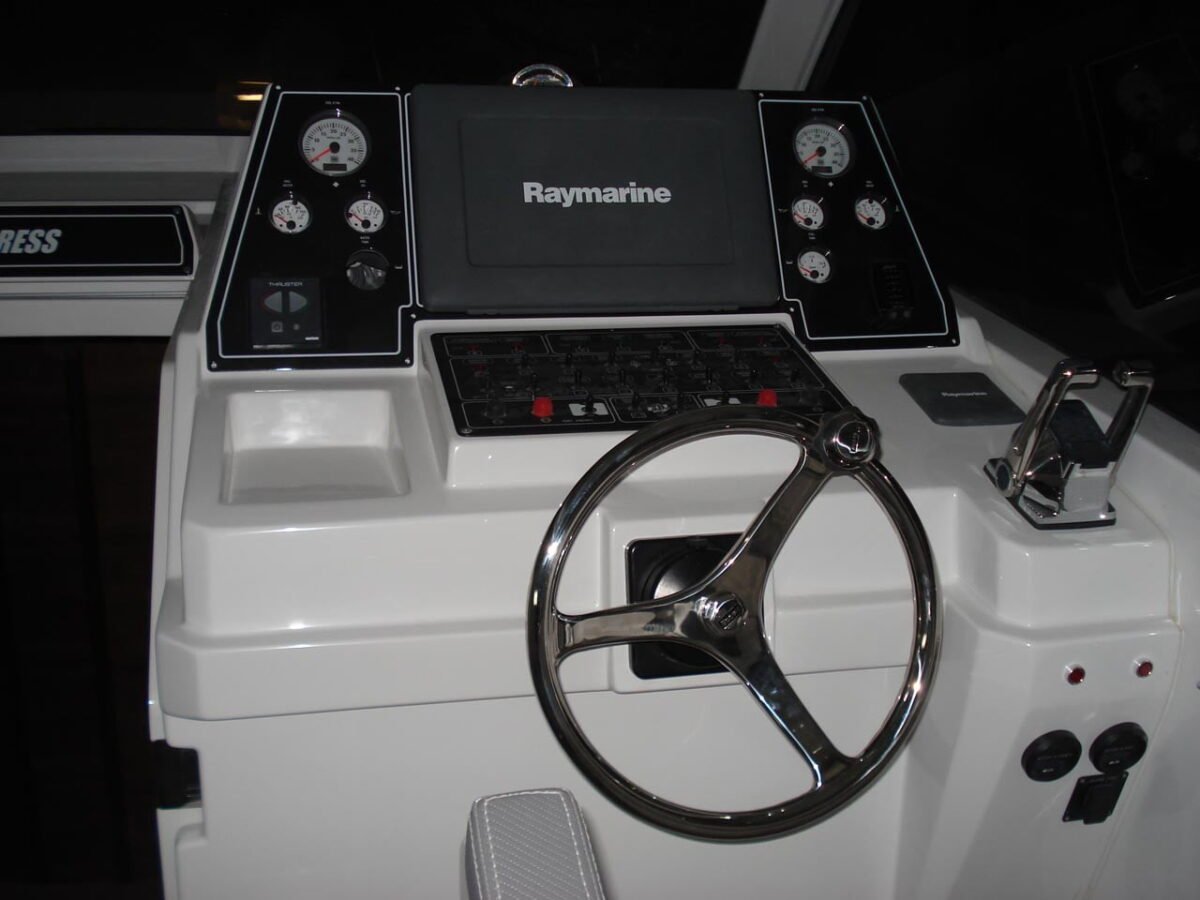

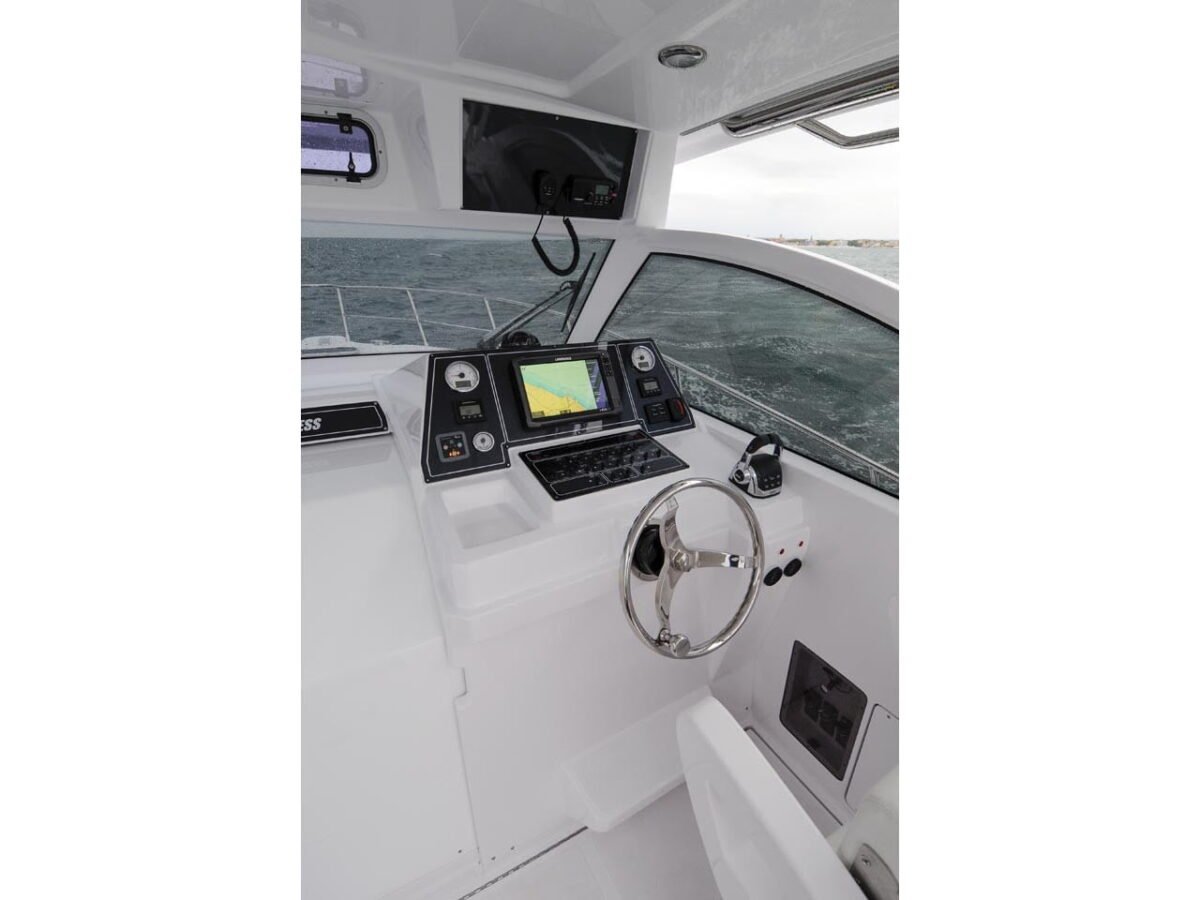

Helm panel with engines instrument package: rev. meters, water thermometers, oil-pressure gauges, engine hour meters, water level, fuel level, acoustic warning signals for engines alarm
Compass 4”
Battery charger 60 Ah
2 x 200 Ah batteries
n° 2 battery switches
Battery parallel
Cable with dockside power
Current taps 12 V in head, bow cabin and dinette
Current taps 220 V in head, bow cabin, dinette and galley
Built-in lights in all the rooms
Fuel system

n° 2 stainless steel fuel tanks with electrical and optical fuel level indicators – capacity 700 l
n° 1 stainless steel fuel decanter tank
n° 2 fuel filler cups
Fuel filters
Fresh water system

Fresh water tank with electrical water level indicator – capacity 200 l
n° 1 fresh water filler cup
Fresh water pressure system pump
Electrical hot water heater 220 V – capacity 25 l
Bilge pump system

n° 3 automatic bilge pumps
n° 3 manual bilge pumps
n° 2 bilge water alarms
Trim tabs system

Hydraulic trim tabs system 12 V with stainless steel plates
Digital trim tabs indicators
Steering system

Hydraulic steering
Ships’ wheel
Engine controls

One lever mechanical controls
Control cables
Windlass system

Electrical windlass 1000 W with foot push button
Windlass double control
Bow plate
Anchor 10 kg
Joint for anchor
50 m zinc plated chain Ø 6
Chain peak with drain
Driveline system

PSS drip less shaft seal
Complete system of zincs for galvanic current
Hydraulic engines hatch-lift
Engines room acoustic insulation
Safety

Fire extinguishing system in the engines room
n° 3 manual dry fire extinguishers in the bow cabin, the galley and the dinette
Remote-controlled fuel tanks closing system with electric valves
Remote-controlled engine vents closing system
STANDARD OUTDOOR FITTING
Hull

Gel coat
Hand-laid fiberglass with vinyl ester resin skin coats
Termanto cored topsides
Solid fiberglass bottom
Water-line
Antifouling bottom paint
PVC and stainless steel rubbing strake
Deck

Gel coat
Hand-laid fiberglass
Termanto core
Structures

Ply-Foam stringer system
Plywood bulkheads
Navigational lights

Navigational lights
Stainless steel support for 360° light
Radar reflectorr
Hatchway and portholes

n° 1 aluminium hatchway with plexiglas in the bow cabin
n° 4 aluminium portholes with plexiglas
n° 1 opening window on the front glass

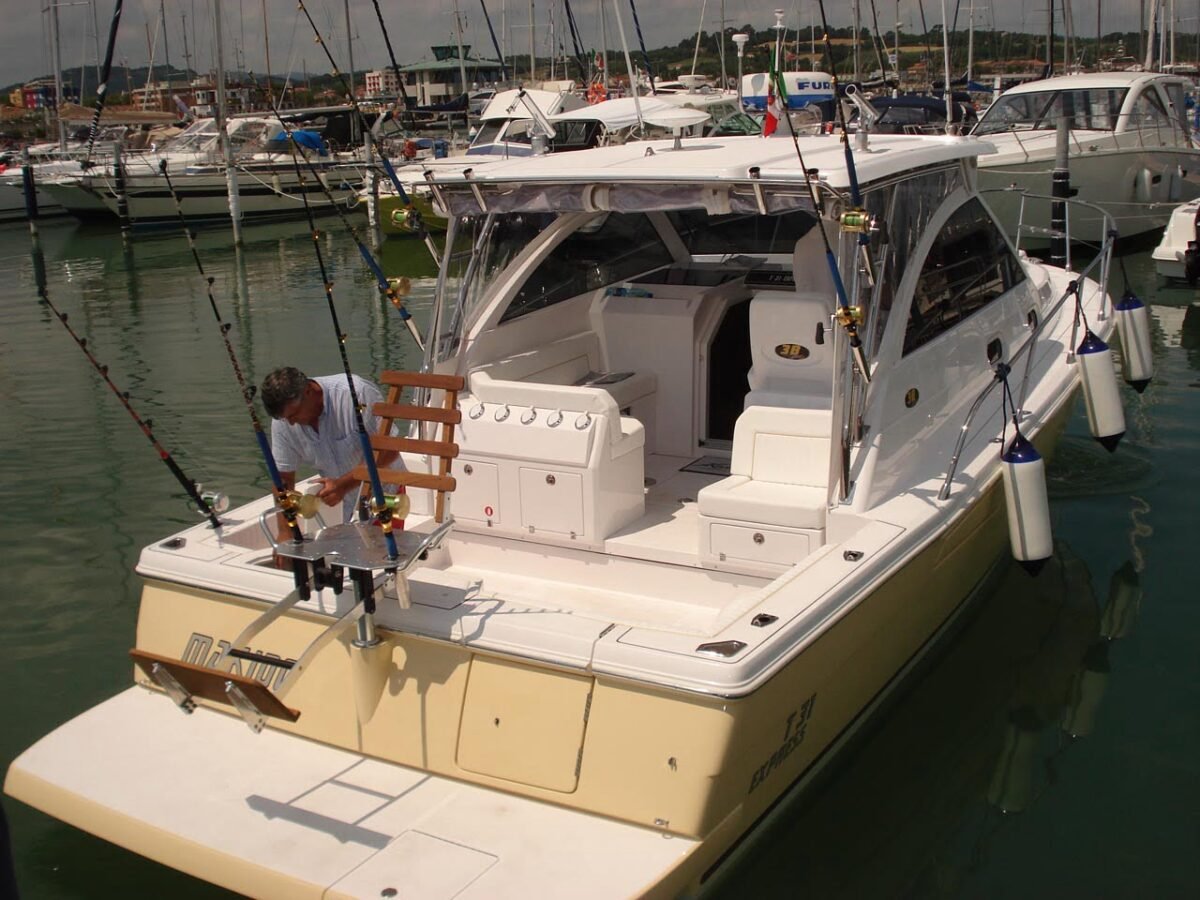

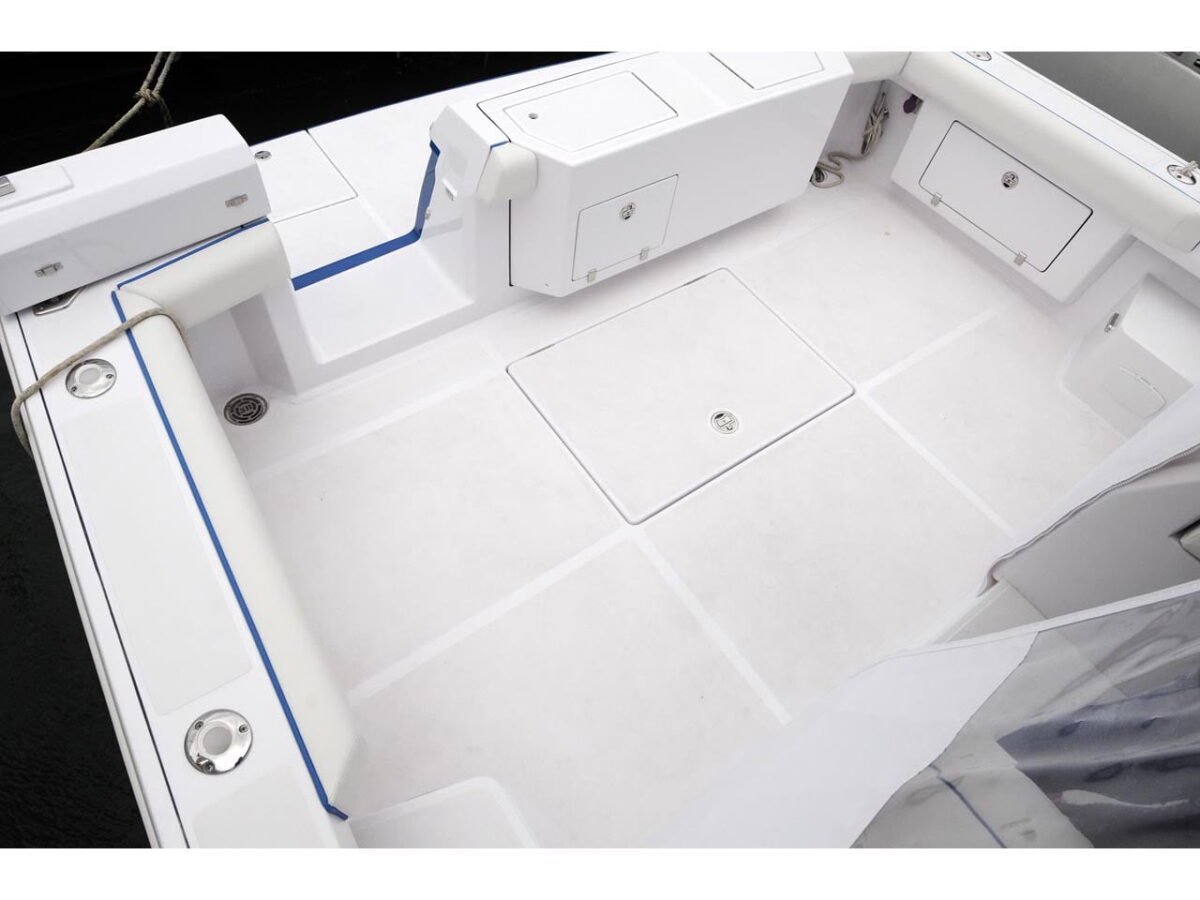

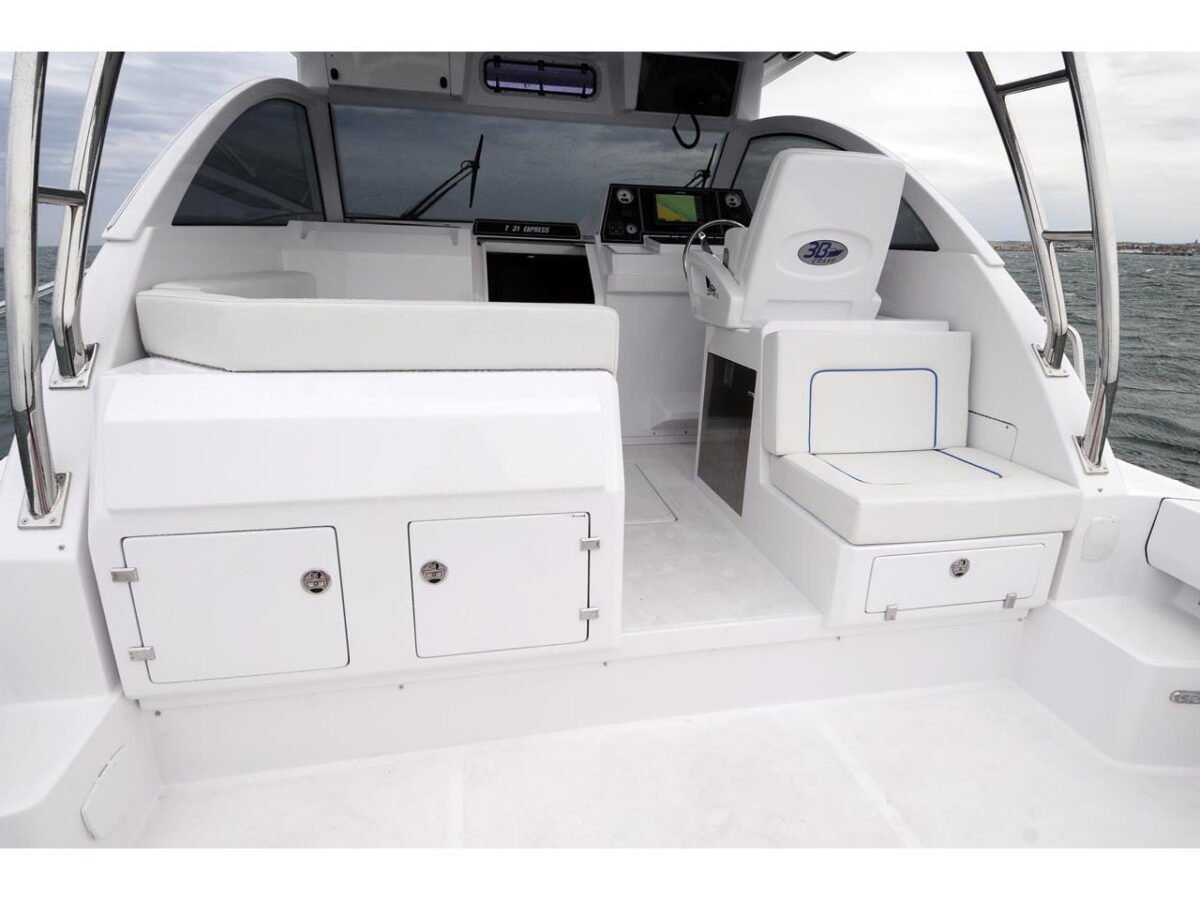

Cockpit and deck fitting

Stainless steel bow pulpit
n° 6 stainless steel mooring cleats
n° 2 stainless steel stern mooring hawsers
n° 4 stainless steel built-in rod holders
Acoustic warning signal
Glued tempered glasses
Dual windshield wiper with washer

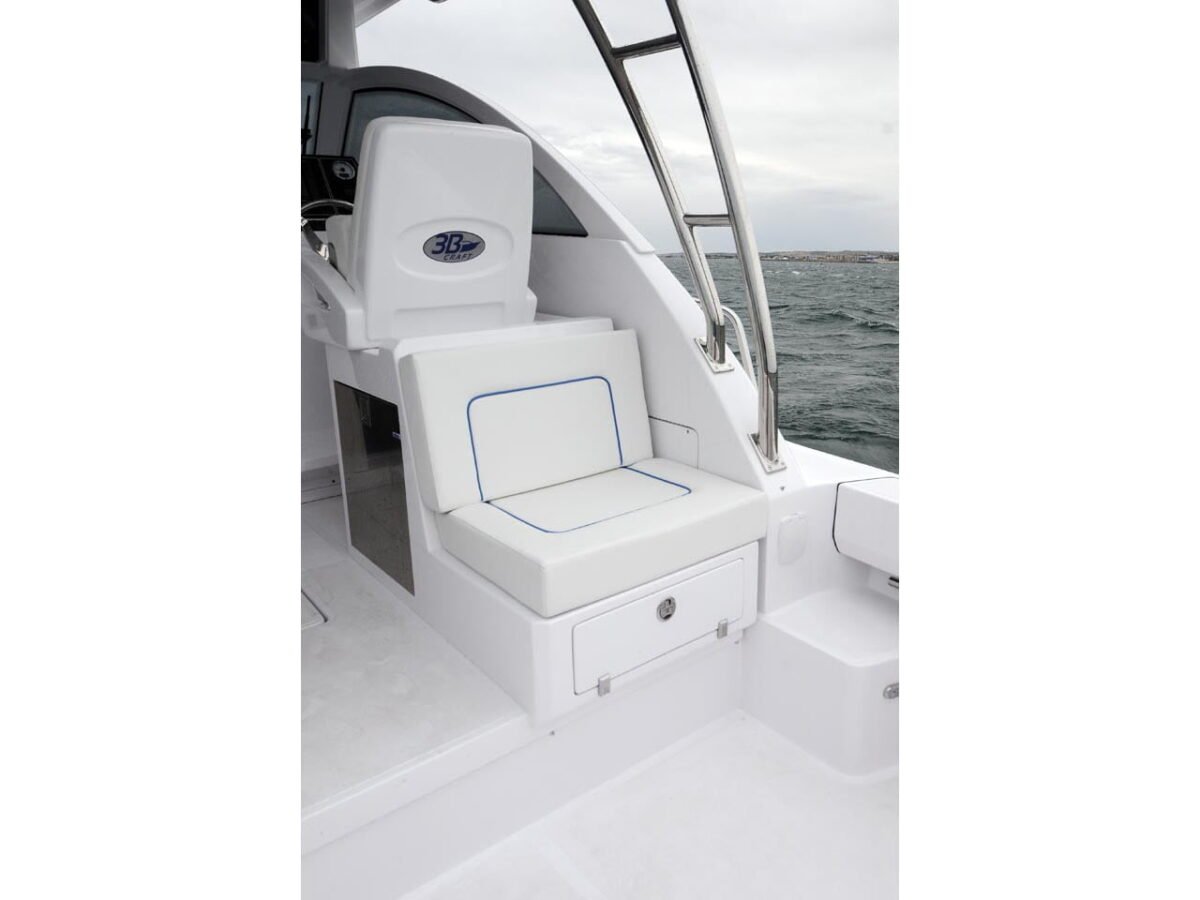

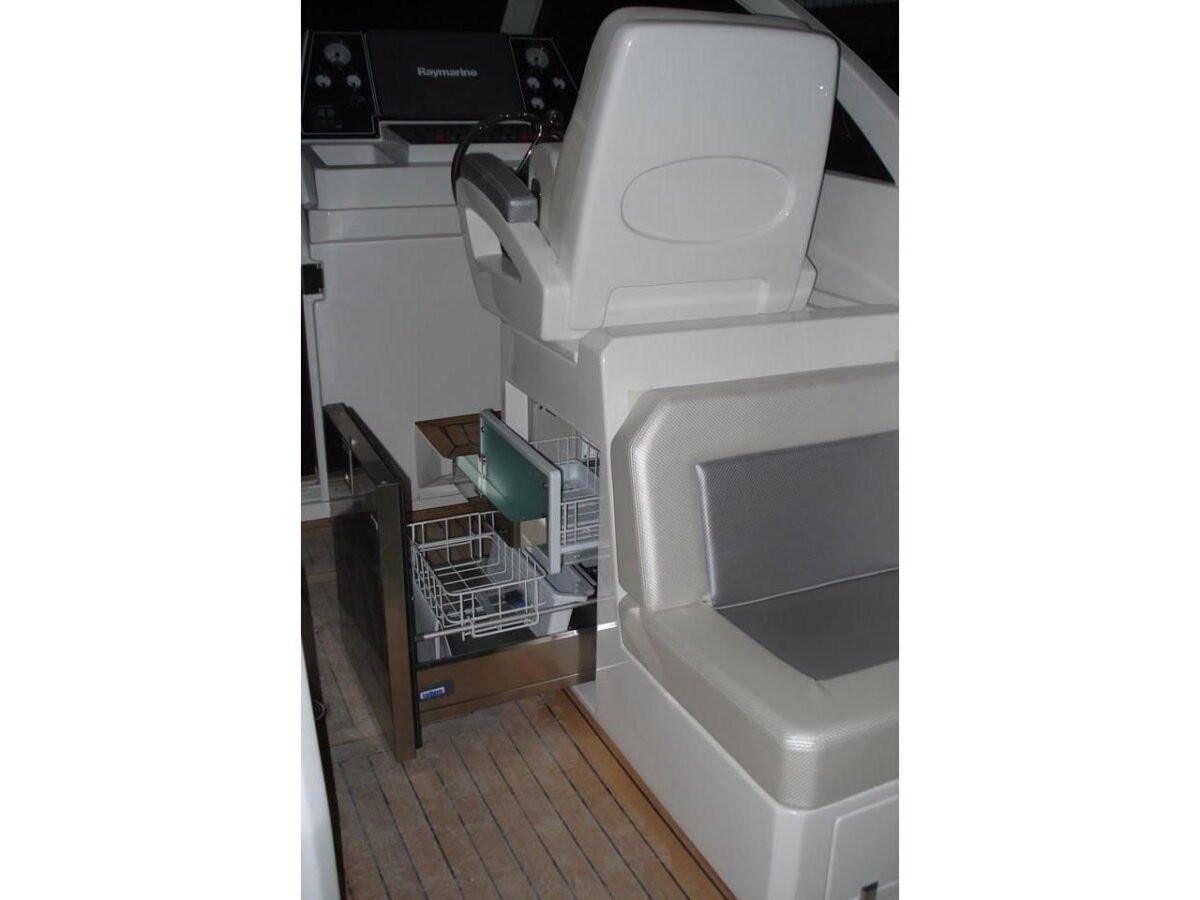

Helm seat unit with forepeak below

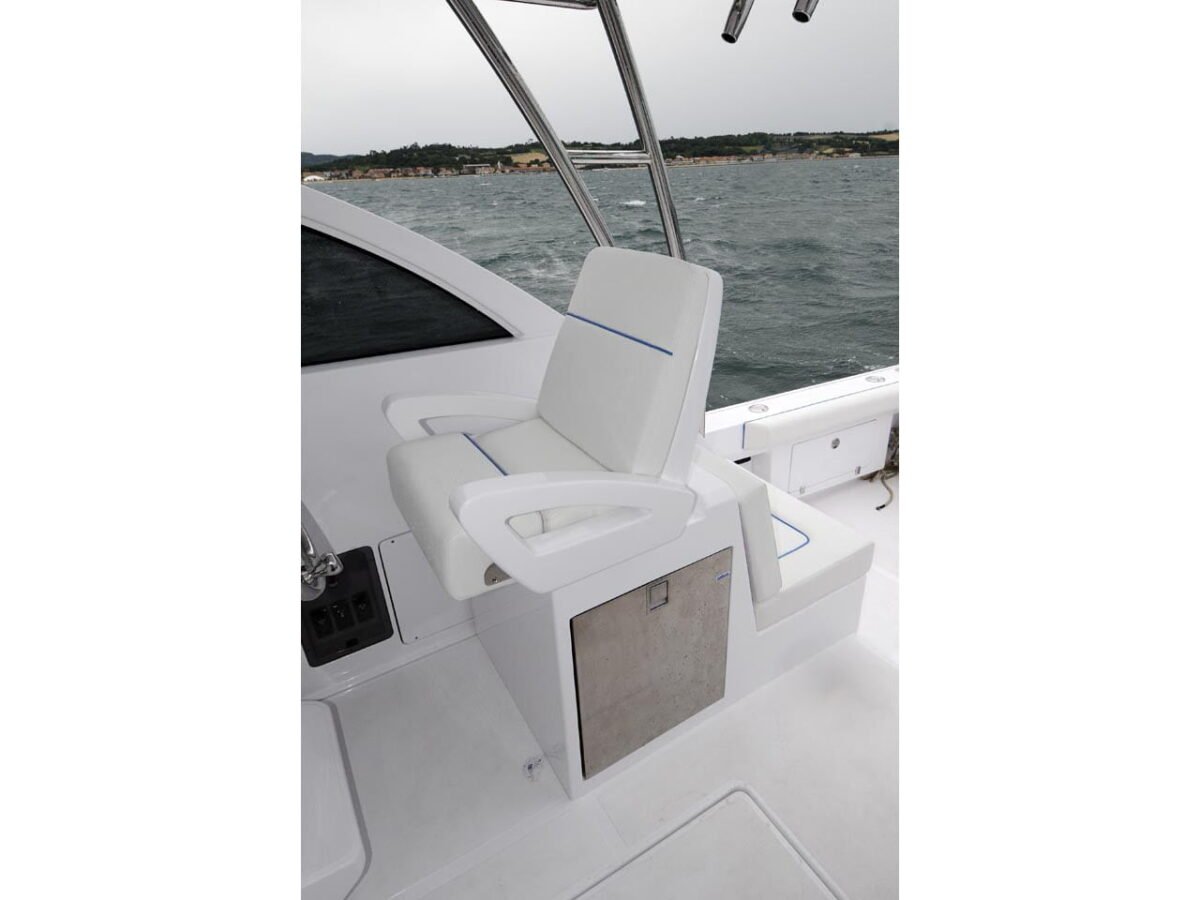

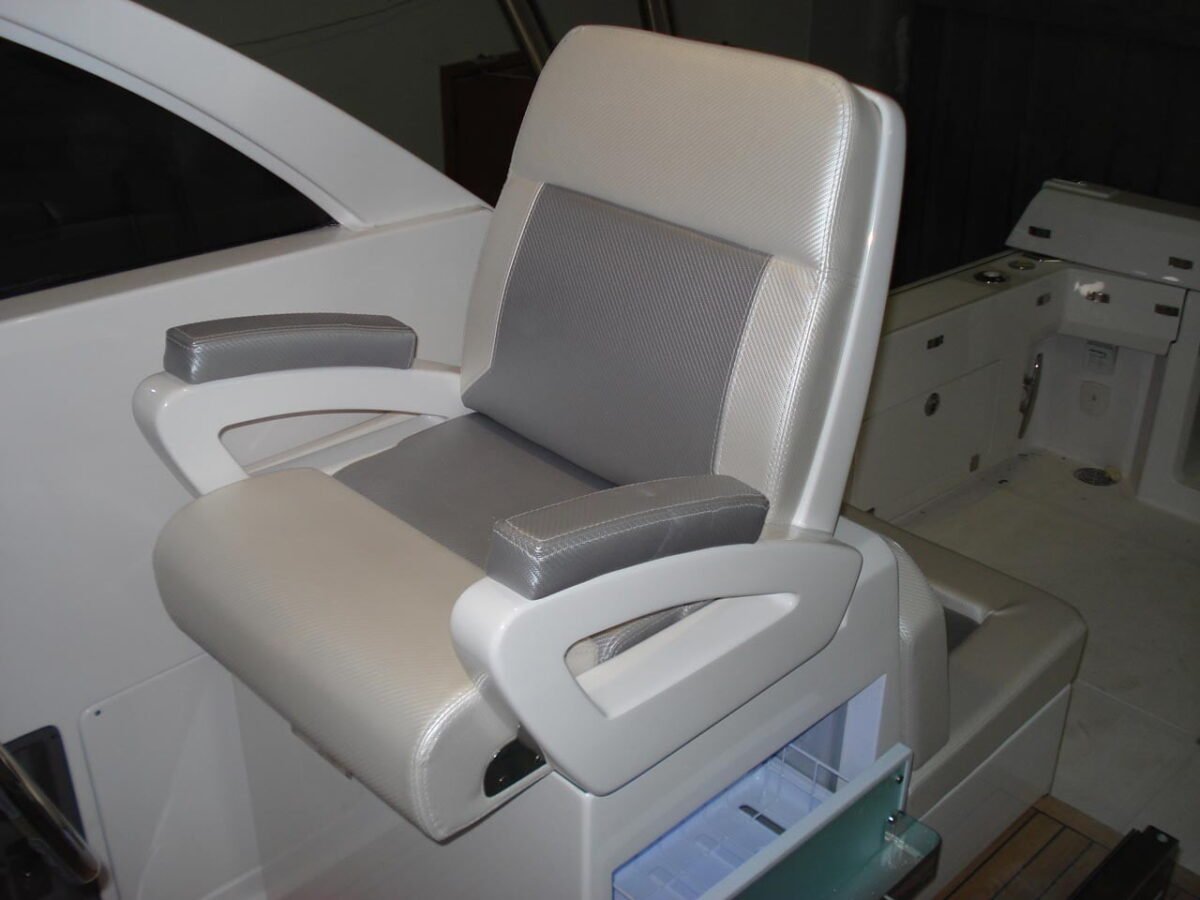

Pilot chair
Stern bench

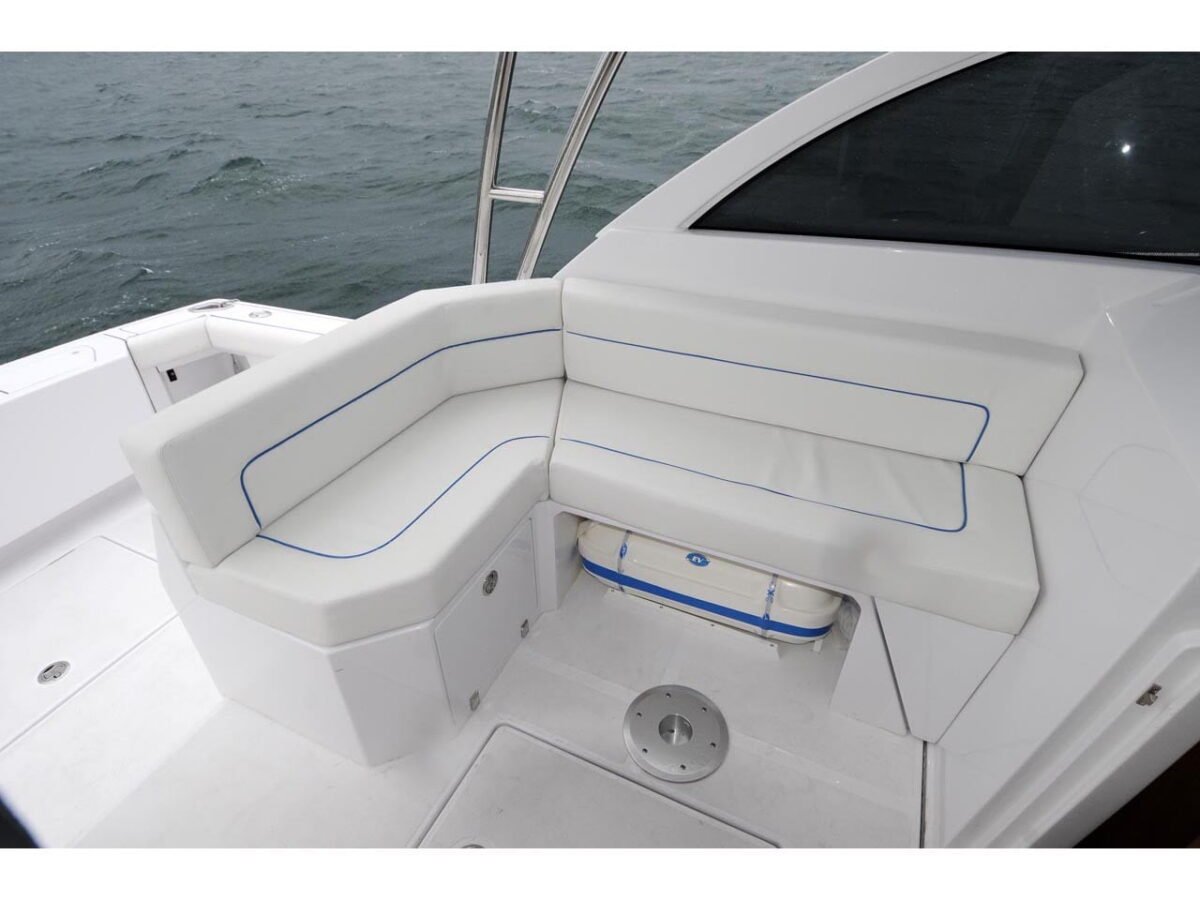

Large “L” shaped lounge with cushions in the upper cockpit
Storages below lounge
Cockpit unit with sink and transom fish box with pump
Courtesy lights
Cockpit paddings
Fresh water shower in the cockpit

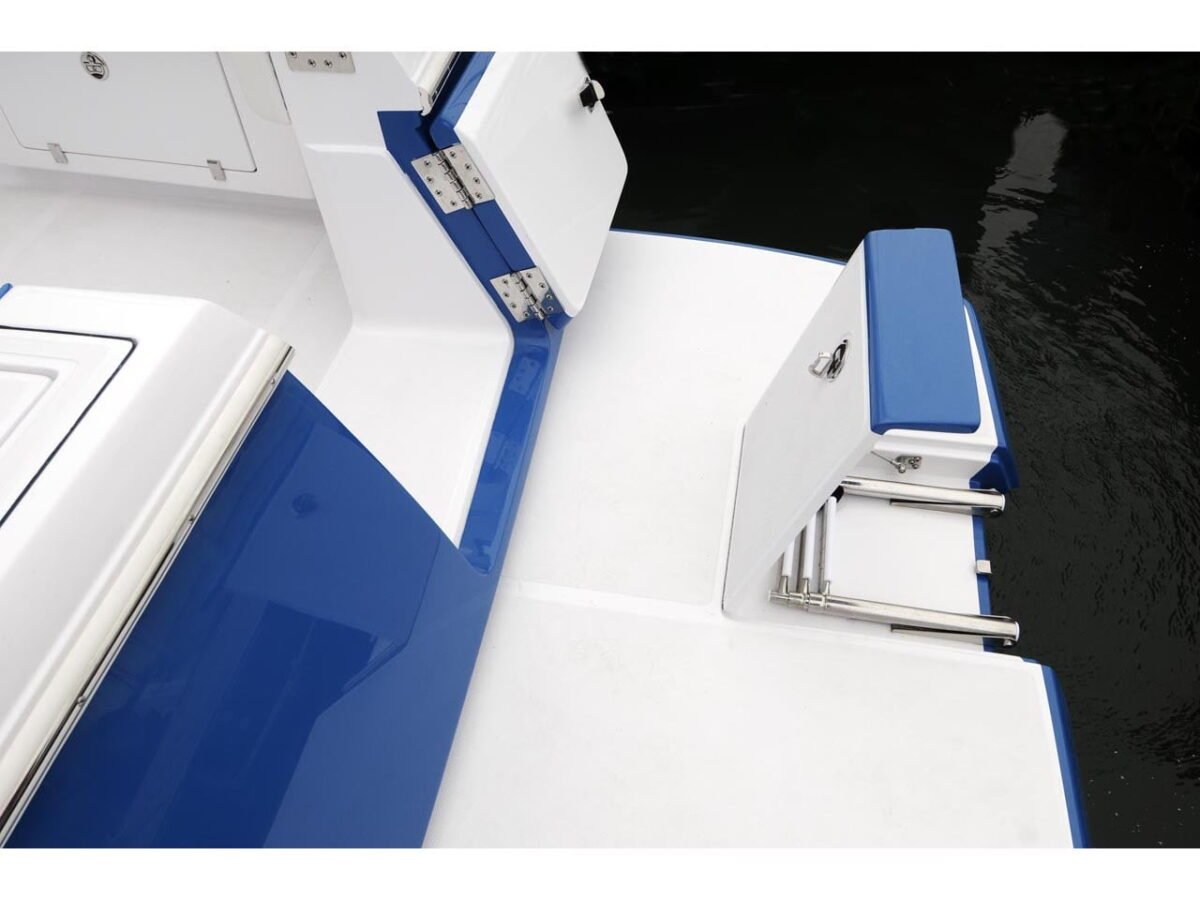

Transom door with tuna gate
Swim platform with stainless steel boarding ladder
Hull-side engines exhaust
Moulded-in hull-side engine vents
Self-draining cockpit
Non-skid surface on the deck and the cockpit

STANDARD INTERNAL FITTING

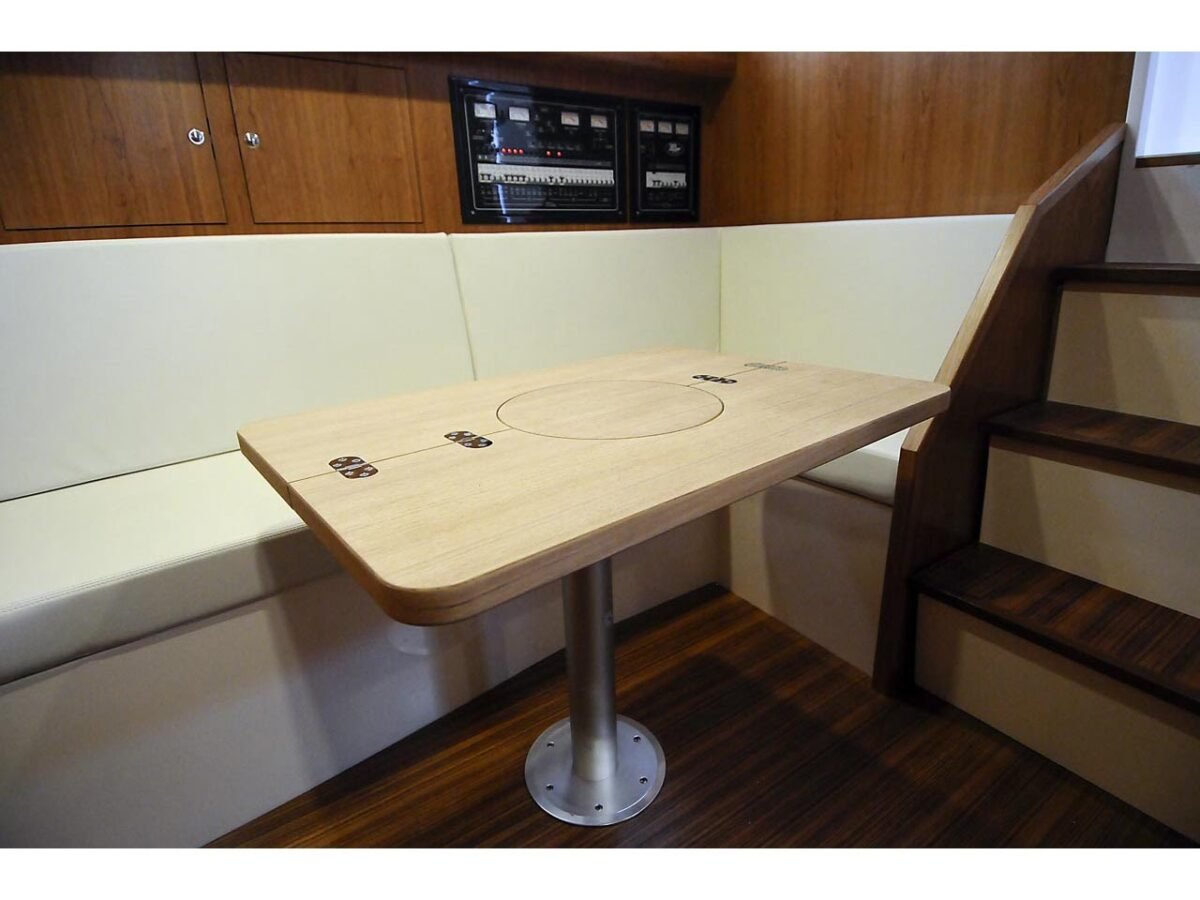

Dinette

Sliding entrance door in the cabin in plexiglas with lock

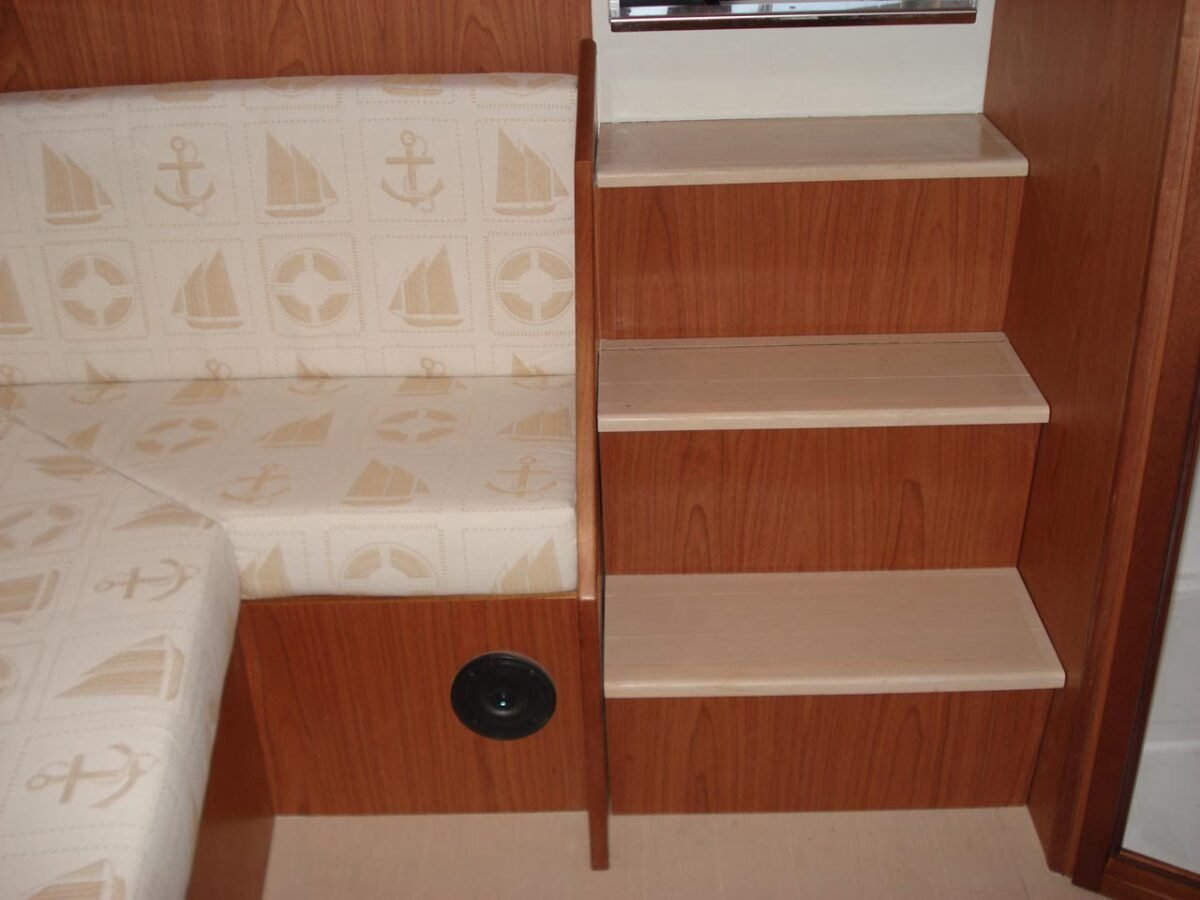

Cabin stairs with wood steps
Dinette lounge with cushions convertible into berth for two
Dinette table in wood
Storages below lounge
Clock, barometer and thermometer with hygrometer
Hanging closet
Hull side shelves
Inside curtains for portholes

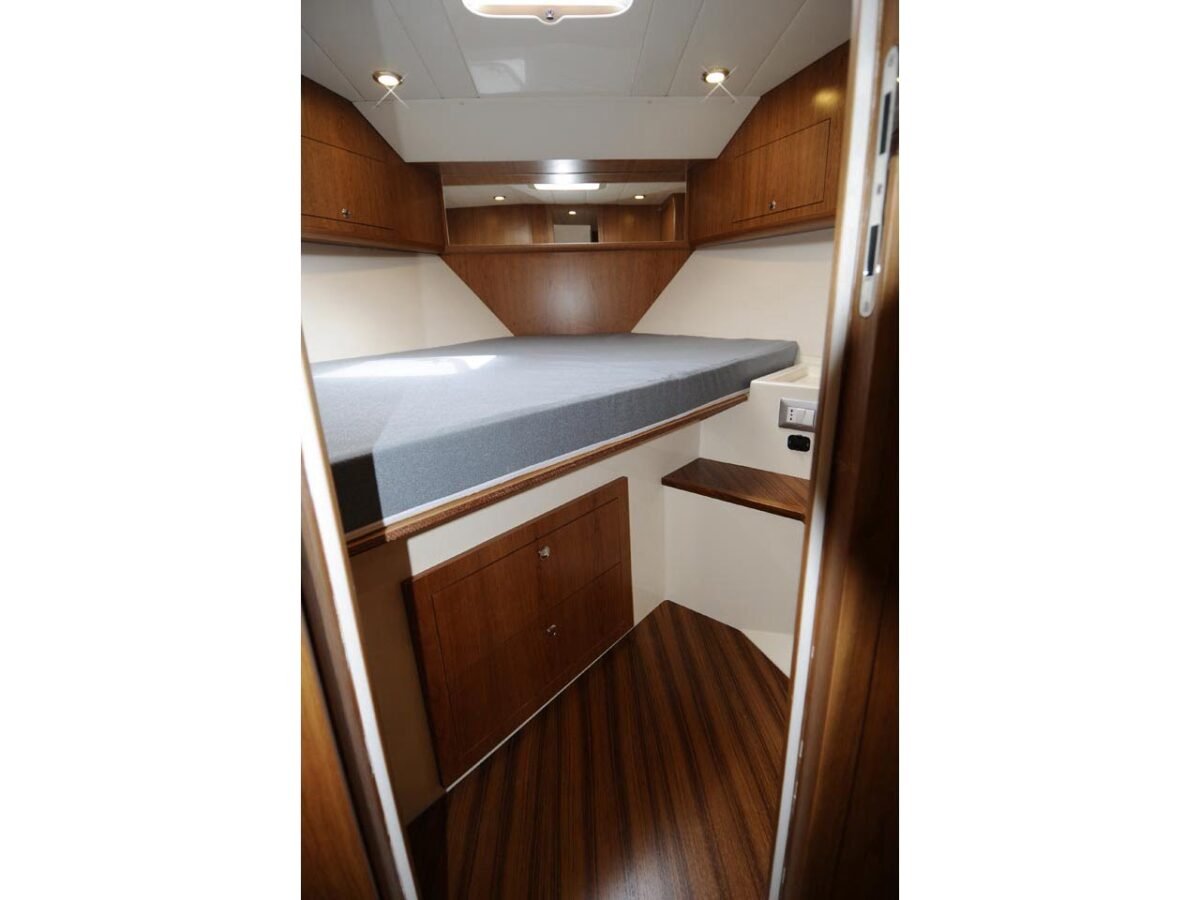

Bow cabin

Double berth with mattress
Storages below berth
Corner cabinet

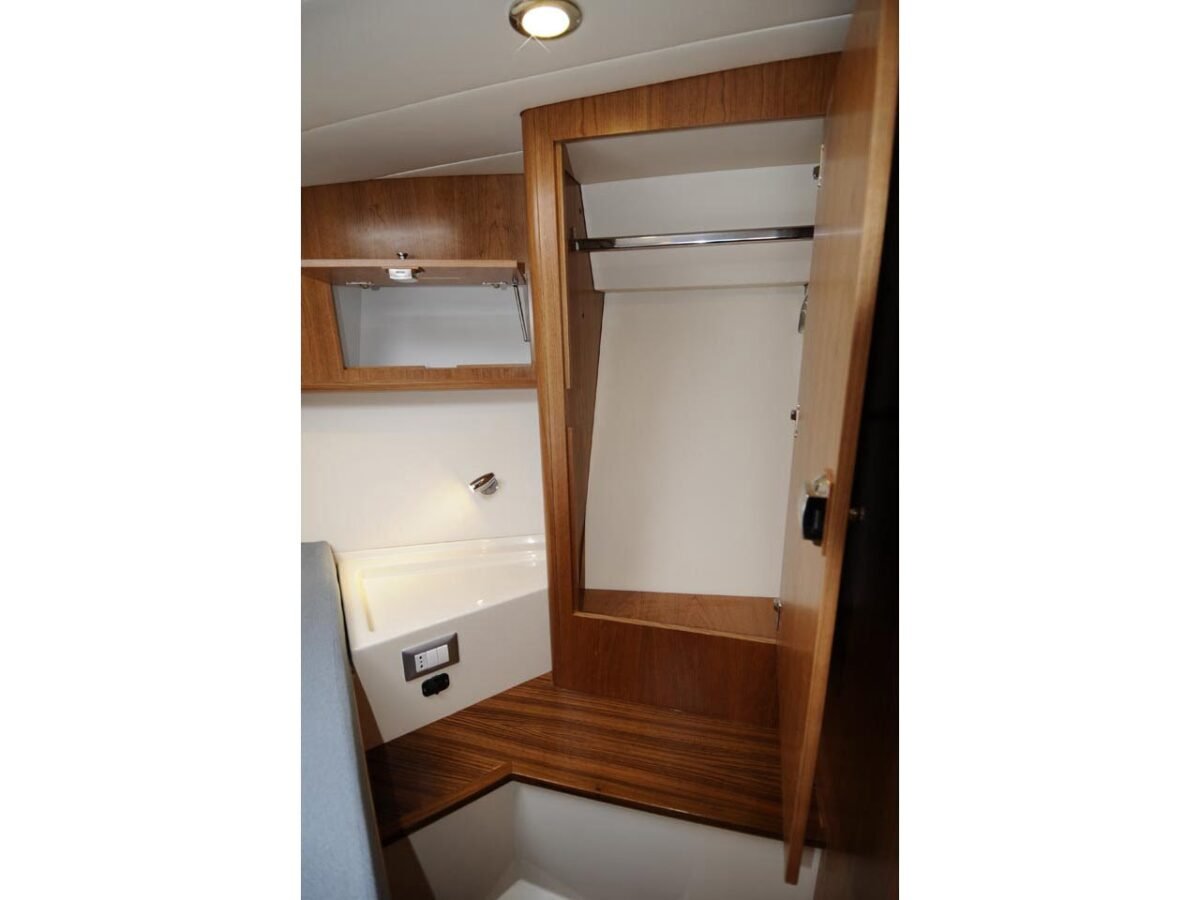

Hanging closet
Hull side shelves
Mirror on the bulkhead

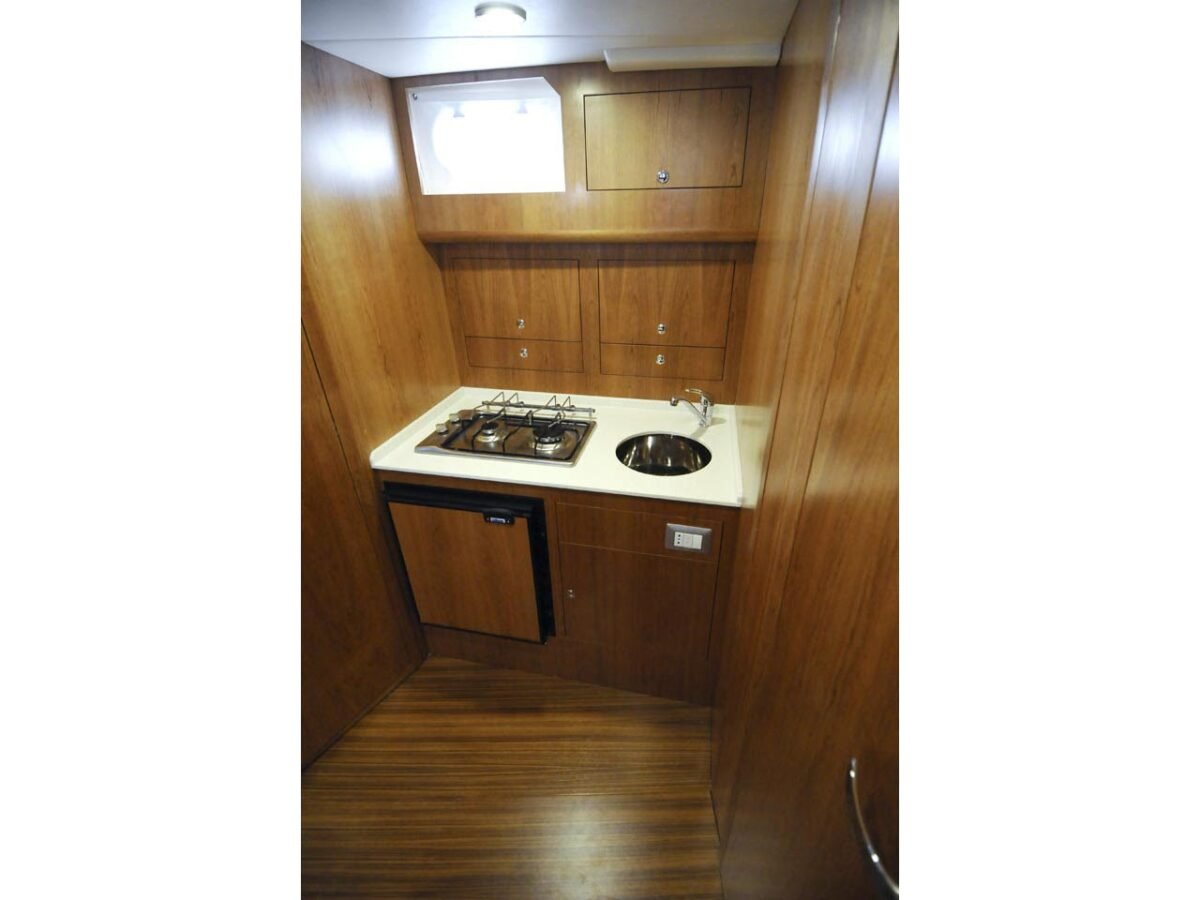

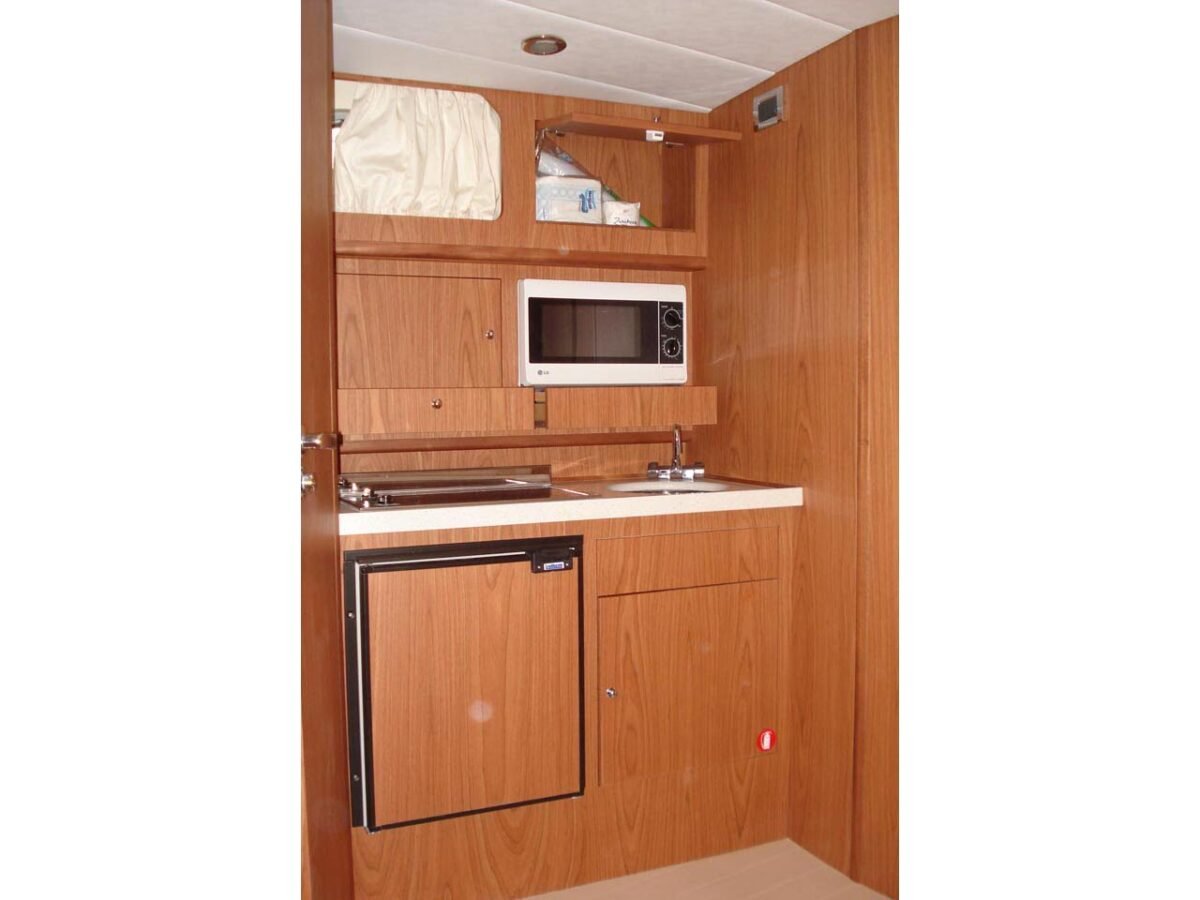

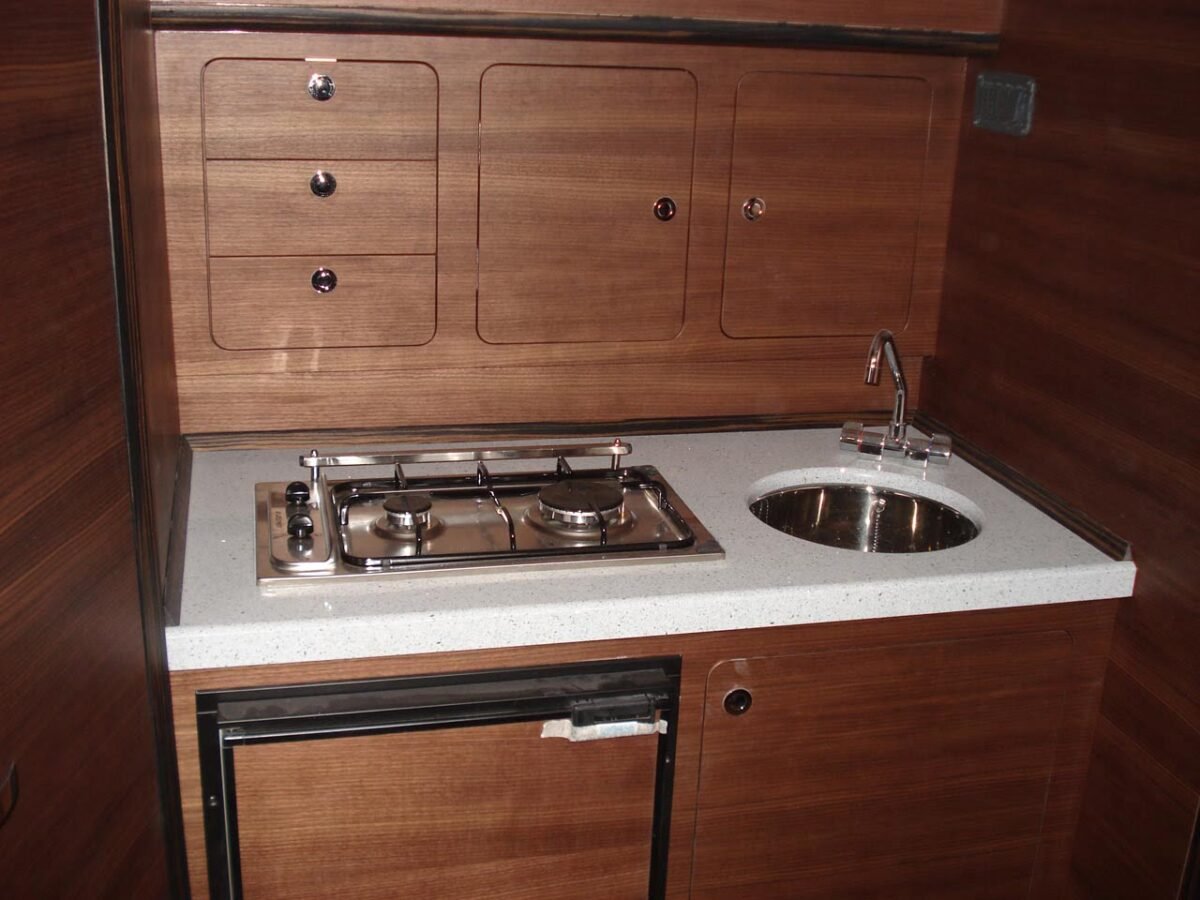

Galley

Galley unit with counter top, cooker and stainless steel sink
65 l refrigerator 12 V
Upper cabinet storages

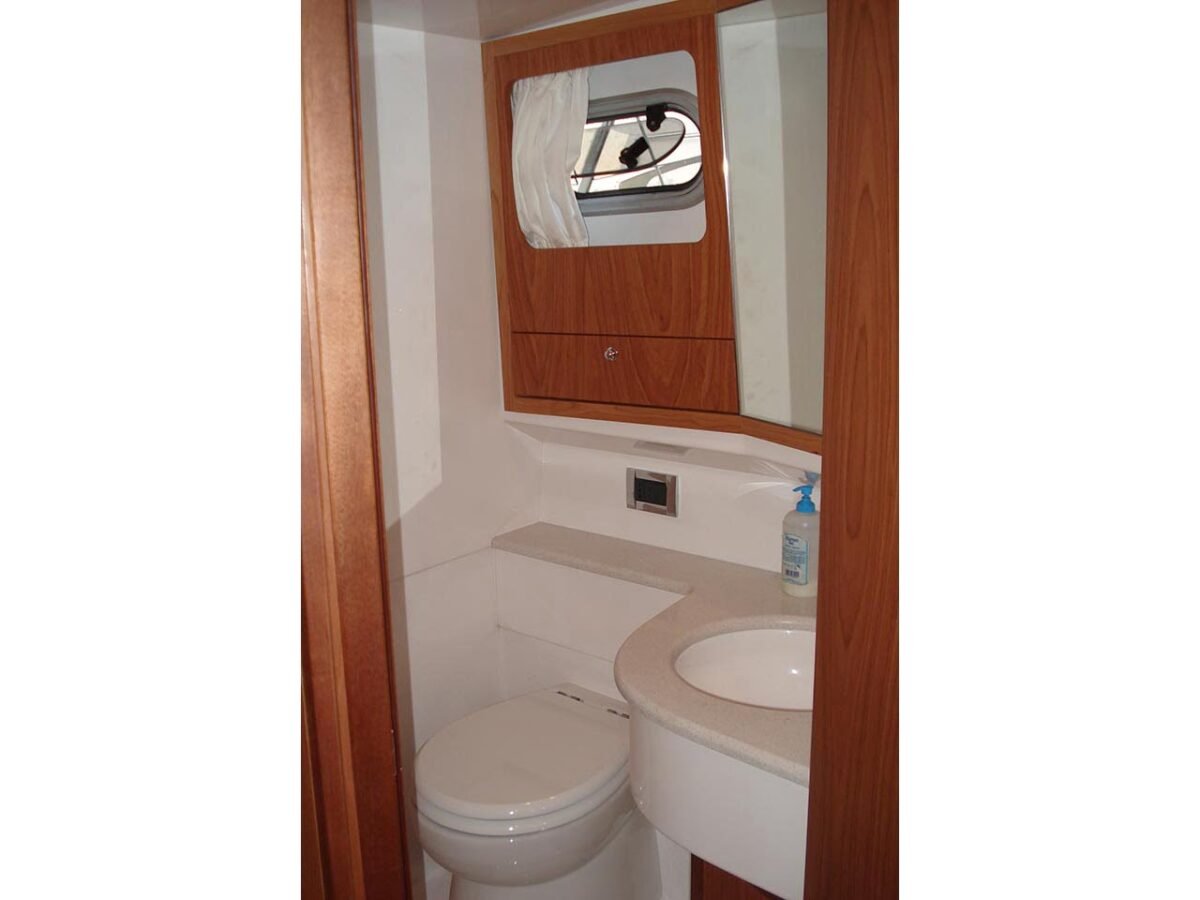

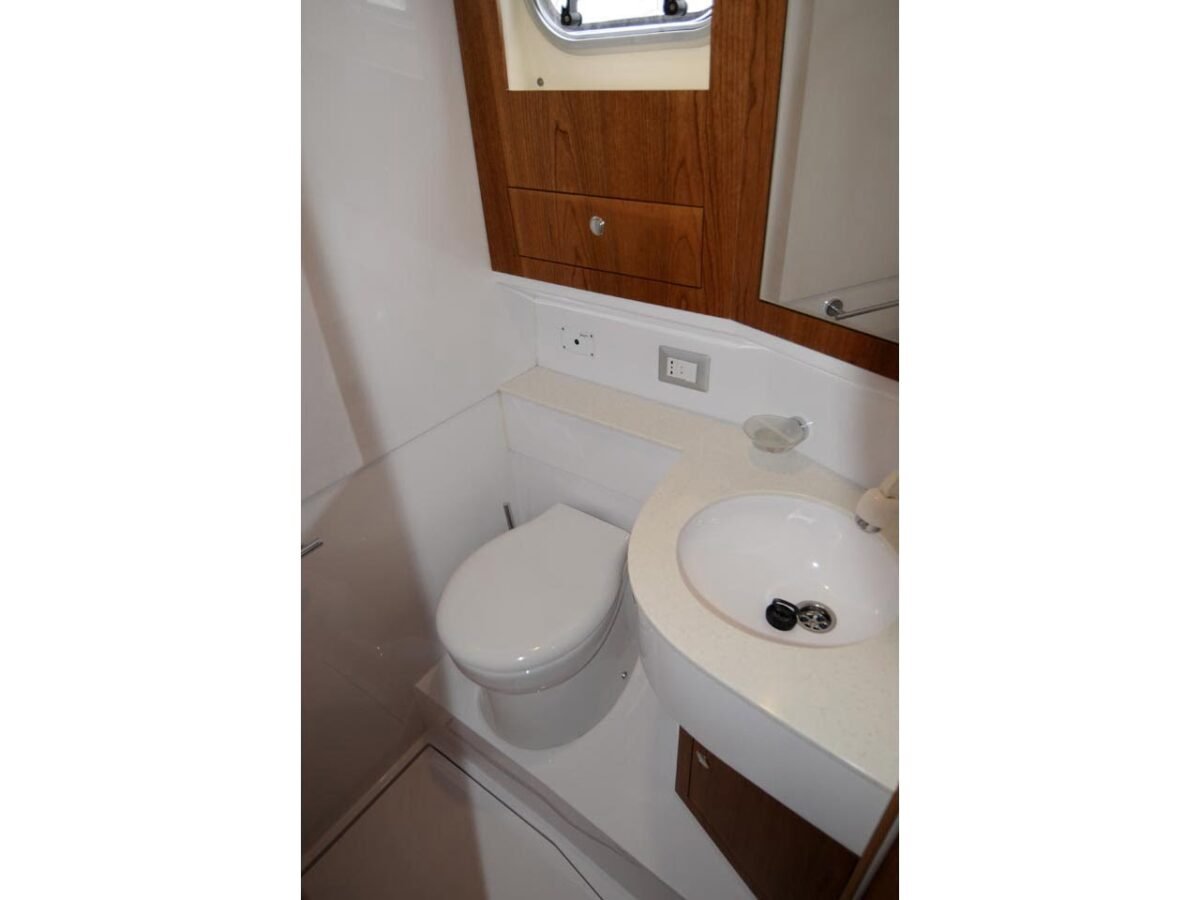

Bathroom

Bathroom unit with counter top, moulded fiberglass sink, hand shower and storages below
Upper cabinet storage with mirror
Electrical toilet
Shower water extraction electric pump and tank
Waste system with holding tank, level and filter
Inside curtain for porthole
Inside furniture and cabin floor in wood

POWER OPTIONS

twin inboard turbo-diesel engines LVM – VM MOTORI (ML 706 LX3) 350 HP
twin inboard turbo-diesel engines FPT – FIAT POWERTRAIN TECHNOLOGIES (NEF 400) 400 HP
twin inboard turbo-diesel engines VOLVO PENTA (D-6 370 EVC-E2) 370 HP

OPTIONAL ACCESSORIES

Fibreglass Hard Top on a stainless steel structure with vain for instrument panel, cockpit floodlights and total enclosures
4-stainless steel rod holders on the stainless steel structure
Cockpit sliding curtain
Bow sundeck
AM/FM stereo with CD and 4 speakers
Electric or gas cooker in the exterior helm seat unit
Cockpit refrigerator
Cockpit sea water pump
2,5 kW diesel generator
3,5 kW diesel generator
12.000 BTU/h air conditioning system
Bow propeller
One lever electro-mechanical controls for single station (instead of standard mechanical controls)
Trolling valves (for Nanni Diesel and FPT engines)
Trolling valves (for Volvo Penta engines)
Custom hull colour (when different from white)

Dimensions et taxe

31 EX – SPECS

Overall length: 10,60 m
Hull length: 9,74 m
Maximum beam: 3,60 m
Dry weight (approx., depends on engines & options): 7.000 kg
Maximum horsepower: 2 x 400 HP
Fuel capacity: 700 l
Fresh water capacity: 200 l
Sleeping capacity: 2 + 2
Maximum persons capacity: 8
CE navigation category: B
